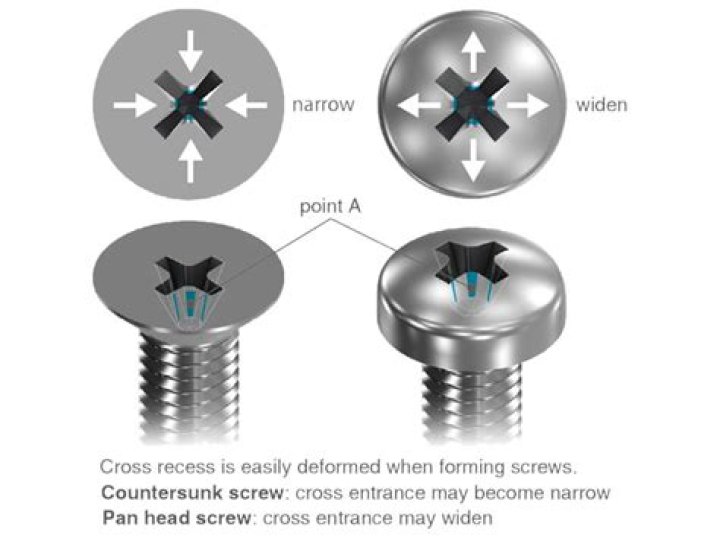

Commonly found in Japanese equipment, JIS looks much like a Phillips screw (and even more similar to Frearson), but is designed not to cam out and will, therefore, be damaged by a Phillips screwdriver if it is too tight. Heads are usually identifiable by a single raised dot to one side of the cross slot.

People also ask, what is a JIS?

?????, Nihon Sangyō Kikaku, formerly ?????? Nihon Kōgyō Kikaku until June 30, 2019) are the standards used for industrial activities in Japan, coordinated by the Japanese Industrial Standards Committee (JISC) and published by the Japanese Standards Association (JSA).

Additionally, is pozidriv the same as JIS? Posidrive are easily identifiable by the four secondary hash marks between the flutes on the screw head. The JIS MAY, or MAY NOT have a single dot between two of the flutes. Refer to the country of origin and the thread size. If it's metric, asian or european, less than 30 years old, it'll be JIS.

Thereof, are JIS screws still used?

Yes, a JIS screwdriver is the correct tool but not having it isn't a big deal. It is easy to modify a Phillips driver into a JIS - just grind off the tip. Most fasteners from Asia have been and are JIS standard. This may have been news 40 years ago, but should be now.

What is JIS machining?

A surface roughness value, cut-off value or reference length, machining method, grain direction, surface undulation, etc. are indicated around the surface symbol as shown in Fig. 1 below. [Centerline average roughness(Ra75)is defined in the supplements to JIS B 0031 and JIS B 0601.]

How do I know what size screwdriver I need?

Here's how to figure out which screwdriver size you need.
  1. Check the package.
  2. Look at the head of your screw.
  3. Measure your standard blade screw head slot.
  4. Use a screwdriver with parallel sides for wooden screws.
  5. Use special screwdrivers to install screws in awkward spaces.

What is a number 2 screwdriver?

#2 Phillips Screwdriver. Shop quality screwdriver designed for comfort and durability. Featuring dual density grips and heat-treated tips and shafts. The #2 is a 1/4" shaft, perfect for derailleur adjustment screws. It is the most common cross tip ("Phillips") required.

What type of screw is more prone to cam out problems?

Phillips-Head Screws. Q: What's the advantage to square-drive screws over Phillips-head screws? A: The primary advantage to square-drive screws is they are much less prone to “cam-out.” Cam-out refers to the slipping of the bit in the screw head as the screw is driven. The square-head screw was invented by P. I.

What is the cross screwdriver called?

Pozidriv Screwdriver Image source. The pozidriv screwdriver, unlike Phillips screwdriver, has two cross sign which are offset at 45 degree angles. These are designed and widely used in Europe.

What does a Phillips screw look like?

A Phillips screwdriver has a head with pointed edges in the shape of a cross, which fit neatly into the cross slots of a Phillips screw. You can buy a Phillips screwdriver in five different sizes, ranging from zero to four, with four being the largest. Use only a Phillips screwdriver for Phillips screws.

How many types of screwdrivers are there?

Most people have heard of at least two types of screwdriver, but there is actually a wide range to choose from. From the common Torx to the not-so-common tri-point, every shape has its own purpose. Let's take a moment and explore 14 different screwdriver types and what they're used for.

What is a PZ type screwdriver?

The name Pozidriv is the abbreviation or acronym for "positive drive". Pozidriv screw symbol and screwdriver tip with parallel flanks. According to ISO standard, the two cross-head screwdriver types are designated as PH for Phillips and PZ for Pozidriv screws.

Why is Phillips screwdriver called?

Why is it called a "phillips head" screwdriver? It is named after Henry F. Phillips, who bought the rights to the cross-shaped recess impression in the head of the screw. Phillips screws have property of being “self-centering,” so they can take more torque without slipping.

What is a standard screwdriver?

A screwdriver is a tool, manual or powered, used for screwing (installing) and unscrewing (removing) screws. A typical simple screwdriver has a handle and a shaft, ending in a tip the user puts into the screw head before turning the handle. The shaft is usually made of tough steel to resist bending or twisting.

How many sizes of Phillips screwdrivers are there?

four

Who invented the screwdriver?

Robertson Screw In 1908, square-drive screws were invented by Canadian P. L. Robertson. Twenty-eight years before Henry Phillips patented his Phillips head screws, which are also square-drive screws.

Why are there different types of screwdrivers?

The reason for the different styles is cost and torque. Phillips screws are self-centering, making powered screwdrivers possible. They're somewhat more expensive to produce than slotted-head. Robertson-head and allen-head fasteners can handle more torque than phillips-head fasteners, but are more expensive.

When did they start using Phillips screws?

1930s

Is Triple square the same as Torx?

A triple square is just that, 3 squares overlaid, each point is 90*. A Torx has a completely different profile. Any good set of triple square sockets (bits) will have the sizes that you need for VW work. Here is a good pdf on measuring the bolt head although if you have a set just use what fits.

What is a PZ bit?

A Pozidriv has ribs between each of the four arms of the cross. A Pozidriv bit does not fit in a Phillips screw head. Pozidriv bits are available in driver sizes from 0 to 5 (from smallest to largest) and have “pz” marked on them.

What is the smallest Torx size?

For use with Internal Socket Head Type TORX Screws
Size Inch P to P Metric P to P
T1 .031 .81mm
T2 .036 .93mm
T3 .046 1.10mm

What is the best screw head type?

Phillips head screw
