Reduce Effects of Shrinkage During the curing process, concrete experiences shrinkage as the water evaporates. This process can cause cracks or other imperfections in the concrete. Fibers can help to improve a concrete's resistance to shrinkage, which will in turn reduce its cracking.

Likewise, people ask, does fiber strengthen concrete?

Generally fibers do not increase the flexural strength of concrete, and so cannot replace moment–resisting or structural steel reinforcement. If the fiber's modulus of elasticity is higher than the matrix (concrete or mortar binder), they help to carry the load by increasing the tensile strength of the material.

Also Know, what is the purpose of fiber in concrete? Fibres are usually used in concrete to control plastic shrinkage cracking and drying shrinkage cracking. They also lower the permeability of concrete and thus reduce bleeding of water. Some types of fibres produce greater impact, abrasion and shatter resistance in concrete.

Also know, does concrete with fiber need rebar?

Fiber concrete still needs reinforcements with rebar. We are doing 1/2 million sq ft slabs meant for warehousing, and they are all fiber reinforced. Diamond dowels at expansion joints. No rebar required.

What is better fiber or wire mesh or rebar in concrete?

Wire mesh resembles a two-dimensional grid. Fiber mesh, on the other hand, reinforces concrete throughout its entire width, rather than just providing a single layer of support. A driveway, patio or sidewalk needs to be particularly strong, given the regular traffic it has to handle.

How strong is concrete with fiber?

The steel fiber used in concrete can generally increase the tensile strength by about 2 times, the bending strength by 1.5 ~ 2.5 times, the impact strength by more than 5 times or even 20 times, the ductility by 4 times, and durability by 100 times above.

How much fiber do I add to concrete?

We add 1 bag (usually 1lb.) of the micro polypropylene fibers to 1 yard of concrete. Most synthetic fibermesh products are engineered for use as concrete reinforcement at a ratio of 1.0 to 1.5 lbs per cubic yard (.

What is microfiber cement?

Duraguard Microfiber is a newly launched, next-generation cement; comprising fibre technology, which results in structures with high strength, damp resistance and minimal cracks. Fiber is widely used for strengthening weaker materials.

How do you make fiber cement?

Pour the bucket of water into a concrete mixer. Add one-half of a 94 lb. bag of Portland cement to the water in the mixer, as well as the bucket of sand. Start the mixer to combine the materials, mixing them together for a few minutes until they form a cement slurry.

Is fiber mesh concrete good?

The fiber mesh strengthens the concrete and the steel rebar reinforces the extra load areas. Fiber mesh can adversely affect the finish depending on whether you want a swirl finish, boom finish or exposed aggregate stone finish. The fiber mesh is good stuff but can stick up above the concrete surface and look fuzzy.

What is the high strength concrete?

High-Strength Concrete. High-performance concrete is a term used to describe concrete with special properties not attributed to normal concrete. High-strength concrete is typically recognized as concrete with a 28-day cylinder compressive strength greater than 6000 psi or 42 Mpa.

What is meant by high performance concrete?

High performance concrete is a concrete mixture, which possess high durability and high strength when compared to conventional concrete. This concrete contains one or more of cementious materials such as fly ash, Silica fume or ground granulated blast furnace slag and usually a super plasticizer.

Do you need rebar for 4 inch slab?

If you don't put rebars in a 4-inch [10 CM] slab, then it won't be reinforced concrete - and won't perform. As a general rule, any section of concrete must have at least 0.25% of its area in rebars to be considered reinforced concrete and do the intended job.

Does a concrete slab need wire mesh?

YES When long joint spacing is required or when joints are unacceptable in floor use. Although short joint spacings alleviate the need for reinforcement, wire mesh will allow for increased distance between joints if correctly placed in the upper portion of the slab, at least two inches below the surface.

Does rebar prevent cracking concrete?

Steel reinforcing bars and welded wire reinforcement will not prevent cracking. Reinforcement is basically dormant until the concrete cracks. After cracking, it becomes active and controls crack widths by restricting crack growth.

Do you need rebar in a concrete slab?

Not all surfaces need concrete rebar reinforcement, but adding it makes concrete stronger and more resistant to large cracks. Without rebar reinforcement, concrete is highly prone to cracks due to tension forces. Rebar helps prevent cracks from growing wider largely by preventing cracked slabs from moving apart.

Can I use rusty rebar in concrete?

As long as there is not loose, flaky rust, the concrete will bond to it better than a smooth, or painted surface. Re: Rusty Rebar?!? Do NOT weld rebar and then put the welded joint in the concrete, that is not allowed by building codes. Virtually all rebar has that thin film of rust on it.

What PSI should concrete be?

The ideal concrete psi for a given project depends on various factors, but the bare minimum for any project usually starts around 2,500 to 3,000 psi. Each concrete structure has a normally acceptable psi range. Concrete footings and slabs on grade typically require a concrete of 3,500 to 4,000 psi.

Where does Rebar go on a concrete slab?

Therefore, for a typical 100 mm residential concrete slab, the rebar should be placed at a depth of approximately two thirds the slab thickness from its surface. Placing the rebar at the bottom of the slab will provide no benefit to the concrete.

How much stronger is concrete with rebar?

Concrete that has an impressive compressive strength of 4,000 psi has maybe 400 psi of tensile strength. Not so strong in tension! Since reinforcing steel can withstand much higher tension or stretching forces than concrete, we use steel to withstand the tensile stresses that build up in the product when it is loaded.

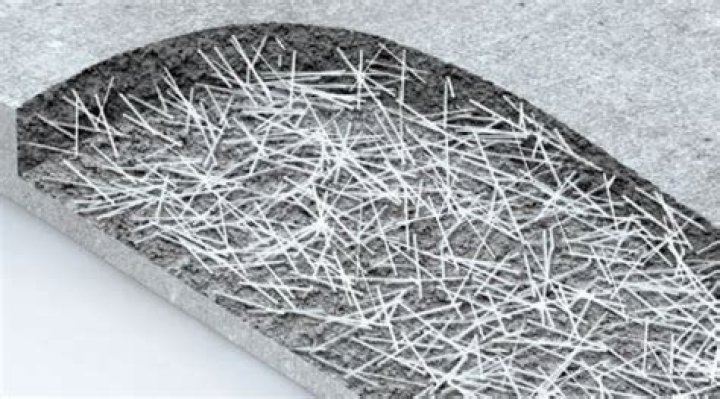

Can you see fiber in concrete?

Another problem is that mesh does not prevent or minimize cracking-it simply holds cracks that have already occurred together. If you could look into a section of concrete poured with fibers you would see millions of fibers distributed in all directions throughout the concrete mix.

Where is Fibre reinforced concrete used?

The aspect ratio of the fiber is the ratio of its length to its diameter. Typical aspect ratio ranges from 30 to 150. Fibre-reinforcement is mainly used in shotcrete, but can also be used in normal concrete. Fibre-reinforced normal concrete are mostly used for on-ground floors and pavements.
