“ So basically XBee is Digi's own Zigbee based protocol. In layman's term they are wicked cool, and fairly easy to use wireless modules. Zigbee - An alliance and a standard of cost and energy efficient mesh networks. XBee uses the Zigbee standard and adds to it and wraps it up in their own neat little package.

In this regard, is Zigbee and XBee are same?

XBee and Zigbee. First off, Xbee refers to a family of devices from Digi that share form factor, host interface and a group of protocols you can select from (Zigbee being one of these). Zigbee, on the other hand, is a mesh networking protocol built upon the 802.15. 4 IEEE standard.

Similarly, what devices use Zigbee? Here are some devices that support the ZigBee protocol:

  • Amazon Echo Plus.
  • Samsung SmartThings.
  • Belkin WeMo.
  • Hive Active Heating and accessories.
  • Philips Hue.
  • Yale smart locks.
  • Honeywell thermostats.
  • Bosch Security Systems.

Also to know is, what is an XBee module?

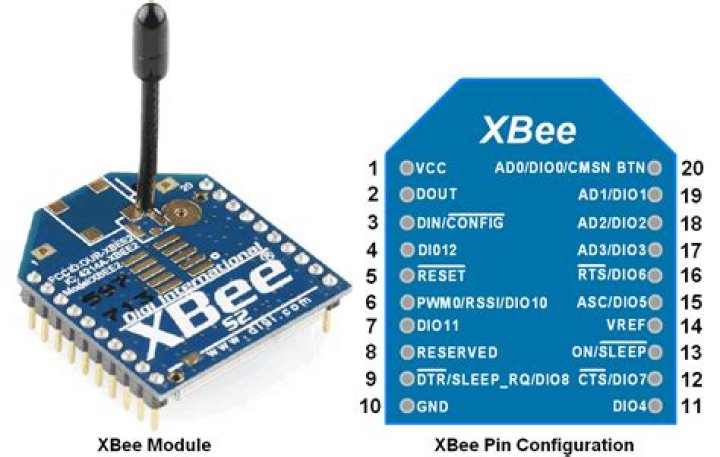

XBee is a module produced by Digi International mainly use as a radio communication transceiver and receiver. It is mesh communication protocols that sits on top of IEEE 802.15. 4 ZigBee standard. XBee supports peer-to-peer as well as point to multi-point network communications wirelessly with the speed of 250 kbits/s.

How does XBee communicate?

XBee devices communicate with each other over the air, sending and receiving wireless messages. However, they can communicate with intelligent devices via the serial interface. XBee devices transmit data coming from the serial input over the air, and they send anything received wirelessly to the serial output.

Is ZigBee better than WiFi?

The ZigBee technology is designed to carry small amounts of data over a short distance while consuming very little power. As opposed to WiFi, it's a mesh networking standard, meaning each node in the network is connected to each other. It's maximum speed is just 250kbps, much lower than the lowest speed WiFi offers.

What is the range of ZigBee?

The in-home free space range of ZigBee is about 40 feet.

What is the use of XBee module?

XBee modules are designed to communicate using a specific protocol, although certain devices can be made to use a different protocol by changing the firmware. Series 1 modules are designed to use 802.15. 4 which is a point-to-point communication protocol.

How far can XBee communicate?

XBee is not the same as ZigBee—instead, XBee is a brand of radio communication modules (made by Digi) that can support a number of protocols, including ZigBee, 802.15. 4, WiFi, etc. Its range is 10 to 30 meters.

Why ZigBee is better than Bluetooth?

Zigbee aims at automation whereas Bluetooth aims at connectivity of mobile devices in close proximity. 2. Zigbee uses low data rates, low power consumption on small packet devices while blue tooth uses higher data rates, higher power consumption on large packet devices.

How much does ZigBee cost?

That $10 is not in just the cost of the wire, but the cost of conduit, installation, and maintenance. In a similar situation, ZigBee wireless is generally considered to cost less than $0.10 per foot, including the cost of the wireless boards and installation.

What is ZigBee protocol?

ZigBee is an IEEE 802.15.4-based specification for a suite of high-level communication protocols used to create personal area networks with small, low-power digital radios, such as for home automation, medical device data collection, and other low-power low-bandwidth needs, designed for small scale projects which need

What is XBee Arduino?

Overview. The Xbee shield allows an Arduino board to communicate wirelessly using Zigbee. It is based on the Xbee module from MaxStream. The module can communicate up to 100 feet indoors or 300 feet outdoors (with line-of-sight).

How does ZigBee work?

ZigBee is primarily used for two-way communication between a sensor and a control system. Like Bluetooth and Wi-Fi, it is a short-range communication and offers connectivity up to 100 meters. ZigBee technology supports the transfer of data coming from the sensors at a rate of about 250 kbps.

How do I connect two XBee modules?

Add XBee modules to XCTU
  1. Connect two XBee modules to your computer using the USB cables.
  2. Launch XCTU.
  3. Click the Configuration working modes button .
  4. Click the Discover radio modules button .
  5. In the Discover radio devices dialog, select the serial ports where you want to look for XBee modules, and click Next.

What is XBee s2c?

XBee S2C is a RF module designed for wireless communication or data exchange and it works on ZigBee mesh communication protocols that sit on top of IEEE 802.15. 4 PHY. The module provides wireless connectivity to end-point devices in any ZigBee mesh networks including devices from other vendors.

What is DigiMesh?

DigiMesh is a proprietary wireless mesh networking topology developed by Digi's RF engineering experts which allows for time synchronized sleeping nodes and low-power operation.

How do I connect Raspberry Pi to XBee?

So, before using the XBee modules with Raspberry Pi, we have to configure these modules using XCTU software. To connect XBee module with the laptop, a USB to serial converter or specifically designed explorer board is used. Just hook up the XBee module to the Explorer board and plug it with the laptop using USB cable.

How many devices can ZigBee support?

65,000 devices

Is Alexa a ZigBee hub?

The Amazon Echo Plus has a built-in smart home hub that seamlessly connects and controls Zigbee smart devices, such as light bulbs, door locks, in-wall switches, and plugs, without the need for separate hubs or a smart home skill.

Does ZigBee interfere with WiFi?

ZigBee and WiFi Coexistence. ZigBee and WiFi channels both exist in the 2.4 GHz band, existing in the exact same frequency space. Operating a ZigBee network and a WiFi network on the same frequency will cause them to interfere with each other.

Can ZigBee be hacked?

Many home security systems use ZigBee to provide simple wireless communication between devices to send signals from the sensors (on door and window magnets) to the alarm. "Unfortunately, existing ZigBee hacking solutions have fallen into disrepair," says Francis Brown, Chief Technology Officer at Bishop Fox.
