Ground wires are fine bare because they are (or, at least, ought to be) already grounded. All of the other wires needed to be covered with insulation material in order to prevent them shorting to ground and interrupting your signal.Also question is, is the bare wire the ground wire?

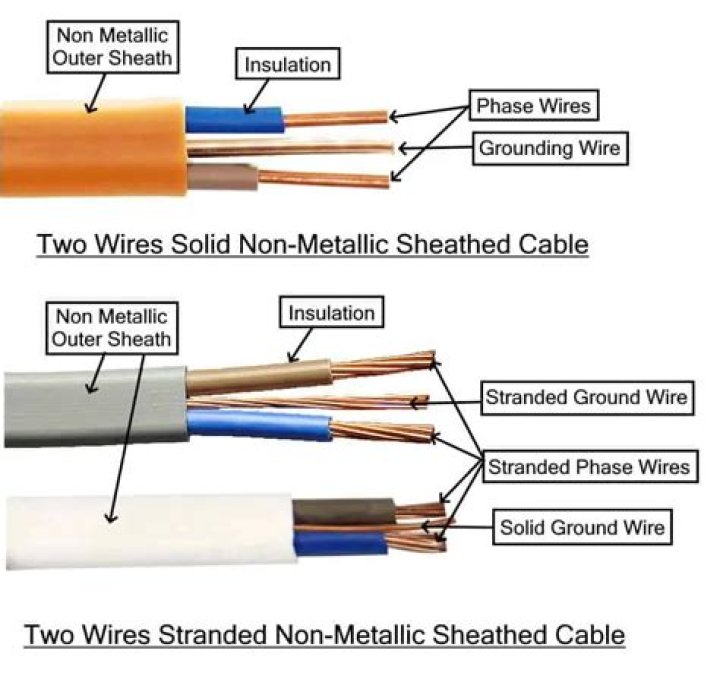

In the US, most of these cables have a bare copper ground wire. To be properly connected, most modern switches and fixtures should also have a ground wire. These might be bare or covered in green insulation. They also should be connected to the bare wires from the cable.
One may also ask, is a bare ground wire dangerous? It is not dangerous to touch a properly configured “ground” wire. You could just use the color of the insulation on it, Green, to tell you it is a ground wire. A bare wire will give you the same signal.
In this way, does ground wire need insulation?
A grounded wire is required by the National Electrical Code to be white or gray in color on the customer side of the meter. Grounded wires on the utility side of the system do not generally have insulation. A "grounding" wire on the other hand is a safety wire that has intentionally been connected to earth.
What does a bare wire mean?
It's just a wire with no insulation. Insulation is not necessary if the wire is actually at ground because the voltage on it will be zero compared to other objects at ground.
What happens if ground wire is not connected?
The appliance will operate normally without the ground wire because it is not a part of the conducting path which supplies electricity to the appliance. In the absence of the ground wire, shock hazard conditions will often not cause the breaker to trip unless the circuit has a ground fault interrupter in it.Can ground wires be exposed?
Exposed Grounding Wires Grounding wires do not have electric current running through them most of the time, and commonly have exposed wires and connections. The grounding wires are safe to touch unless there is an electrical surge that causes electricity to flow through the grounding wire.Can 2 ground wires touch?
There is only one green ground screw connection on an outlet. The two ground wires must be wire-nutted together along with another 6-inch length of green or bare ground wire known as a pigtail. A grounded electrical outlet has three holes to provide a ground connection for three-prong plugged devices.Should I cap the ground wire?
3 Answers. Yes. If you're getting rid of the receptacle, you should cap off the grounded (neutral) conductor in the switch box. If the neutral was for an outlet that you're removing from the system, then so long as other outlets in the circuit have a properly grounded neutral wire, everything should be all set.Can a bare ground wire touch metal?
Basically the metal cases on *everything* electrical should be grounded, so no problem with a bare ground wire touching any metal case/box. Also it is less expensive to manufacture the wire. Now if a bare ground wire were to contact a "hot" conductor, then this would trip the breaker*.How do you ground an ungrounded outlet?
The ideal way to repair an ungrounded 3-prong outlet is to establish a continuous electrical path back to the main panel. If the outlet is installed in a metal box and that metal box has metal conduit wiring (BX cable) all the way back to the panel, then you can ground your outlet with just a little work.Does ground wire size matter?
Re: Does ground AWG size matter? Actually the neutral wire does not always have to be the same size as the "hot" or ungrounded size wire, and the ground is sometimes more than one size smaller.Do I need ground wire with conduit?
Conduit (RMC, IMC or EMT) is an NEC-accepted ground path. So, if the wires are in steel conduit, no OTHER ground wire is required. If that gives you concerns, you might find this link reporting research into the effectiveness of conduit as a ground relieves them.Why should we use insulated wires instead of bare wires?
The wire if used without insulation will get short circuit if it touch to the other conducting material. Therefore insulation on the conducting material is must. The copper wire used as a winding material for motor is also insulated.Can you run bare ground wire in PVC conduit?
Running bare ground inside the PVC conduit is fine. Inside is better than outside in case you ever need to service it or if your demand out there increases pulling larger conductors and a larger ground. In 1-1/4" sch 40 PVC you're permitted up to four #4 wires, and this gauge will get you 100 amps.Can I use 14 gauge ground wire on 20 amp circuit?
NEC 240.4(D)(3) states that 14 AWG must be protected at 15A. You can not use 14 AWG anywhere on a circuit that has a 20A breaker. If you are putting 15 amp receptacles on a 20 amp circuit with 12 gauge wire, then you MUST use the screw terminals, not the back stab terminals. Just use the side terminals.What happens if hot wire touches ground?
A ground fault occurs when the hot wire is exposed and touches either the ground wire or it touches metal in the junction box or in the appliance. Another term for ground fault is a short to ground connection.What happens if neutral is not grounded?
Hazard of Open Service Neutral If the grounded (neutral) service conductor is opened or not provided at all, objectionable neutral current will flow on metal parts of the electrical system and dangerous voltage will be present on the metal parts providing the potential for electric shock.Can I tie the neutral and ground together?
No, the neutral and ground should never be wired together. This is wrong, and potentially dangerous. When you plug in something in the outlet, the neutral will be live, as it closes the circuit. If the ground is wired to the neutral, the ground of the applicance will also be live.Can you get electrocuted without touching the ground?
Electricity Can Travel Through You So if you touch an electric circuit and the ground at the same time, you will become electricity's easiest path. Electricity will flow through you, and you could be seriously hurt or killed. You don't have to be touching the ground directly to conduct electricity.Can you touch the neutral wire?
In typical power distribution networks in many parts of the world, the neutral is grounded, that is, tied directly to the ground wire and earth ground rod. For this reason, unless there is some wiring fault, touching the neutral wire should not give a shock.Can I connect red and black wires together?
In 220-volt circuits, red wires are the secondary live wires. Like black wires, they can be used in some types of switch legs. It's possible to link two red wires together or a red wire to a black wire.
