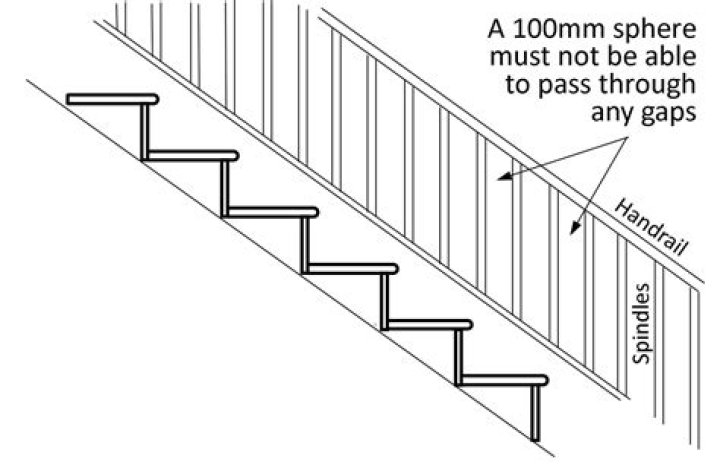

The building regulations state that a 100mm sphere cannot pass through any opening and this includes between spindles. So your maximum space between spindles is 99mm.

Besides, how far apart should spindles be on stairs?

Baluster Spacing – The general rule of thumb is to have 3 baluster per foot so you do not have any gaps greater than four inches. If you put one baluster every 4 inches on center, then you will typically always be fine.

Also, how do you calculate baluster spacing on stairs? Center to Center Spacing: Simply take the tread run divided by the number of balusters per tread. So let's assume a tread run of 10 and begin with a 2 baluster per tread pattern. So we take 10 ÷ 2 = 5. Therefore the spacing is 5” from center to center of two balusters per tread.

Beside above, how do you calculate Spacing between spindles?

Luckily, there is a simple solution to this puzzle.

  1. Measure the width of the gap between the inner surfaces of the two support posts.
  2. Measure the width of a single spindle.
  3. Add the two figures together.
  4. Count the number of spindles to be used and add one.
  5. Divide the sum of the width by the sum of the number of spindles.

What is the maximum space between spindles?

The building regulations state that a 100mm sphere cannot pass through any opening and this includes between spindles. So your maximum space between spindles is 99mm.

How do you set the spindles on a staircase?

Perfect spindle spacings on an angled staircase, step by step installation & workings
  1. Step 1: Cut the spindles.
  2. Step 2: Measure the remaining horizontal space.
  3. Step 3: Divide by the number of spindle spacings needed (gaps).
  4. Step 4: Cut the packing spacers that keep the spindles spaced apart.

How do you fix handrail spindles?

Apply a little adhesive to the ends of the spindle and fix with a pin into the handrail groove. The head of the pin should be placed so that it will be covered by the fillet. Repeat until all spindles and fillets have been secured in place.

How much do stair spindles cost?

Iron Spindle or Baluster Installation Pricing Replacing spindles in your railing falls between $260 and $2,000. That includes $130 to $1,600 per spindle, and $130 to $400 for labor. It's an option if you only want to replace the balusters for added durability and style.

What is the height of a stair railing?

between 34 and 38 inches

How high should a stair railing be?

Proper Height A stair rail must be between 34 and 38 inches above the top of the stair tread at all times to meet United States building code requirements. It should also extend a foot before and after the stairs, for added safety.

How do I figure out how many spindles I need?

How many spindles you need to buy will depend on the thickness of the spindle you are installing - use this formula
  1. If you are fitting 32mm spindles - divide the measurement by 112.
  2. When installing 35mm spindles - divide the measurement by 115.
  3. Or if you are installing 41mm spindles - divide the measurement by 121.

How far apart should staircase spindles be?

6-inch balusters may be placed 6-inches or more apart, while 2-inch balusters may be only 4-inches apart. Much will depend upon how it looks and where they are located. If they are intended to provide support and prevent small children from going in between them, 4-inches apart is a good general guideline.

How do you evenly space things?

Divide distance "A" by the number of spaces between objects. In our example, this is 223.5" / 3 = 74.5". This is the center-to-center distance of the posts (or flower pots on your porch, holes in your board, or pickets on your fence). The spacing between the objects is that distance less the width of your objects.

How do you divide spaces evenly?

First, multiply the baluster width by the number of balusters to find the total area occupied by the balusters. Next, subtract the baluster area from the total installation width to find the total area occupied by spaces. Finally, divide the total width of the space area by the number of units.

How far apart should handrail posts be?

Secure the Posts Maximum spacing of posts is 72 inches on center. Bolts should be vertically spaced no less than 5-1/8 inch apart.

What is a baluster on stairs?

A baluster is a vertical moulded shaft, square, or lathe-turned form found in stairways, parapets, and other architectural features. In furniture construction it is known as a spindle. A group of balusters supporting handrail, coping, or ornamental detail are known as a balustrade.

How many balusters are there?

In order to comply with building regulations and codes, balusters must be spaced no more than 4 inches apart on center. The general rule is that your railing must have three balusters per foot (every 12 inches), although you can place them closer together if you'd like.
