US AC power circuit wiring color codes
| Function | label | Color, common |
| Protective ground | PG | bare, green, or green-yellow |
| Neutral | N | white |
| Line, single phase | L | black or red (2nd hot) |

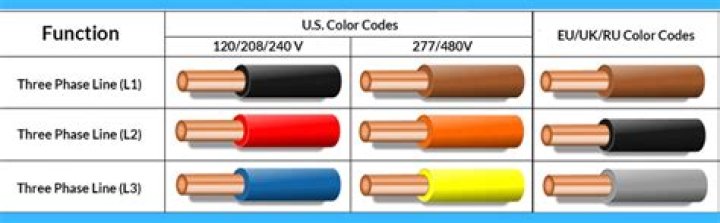

| Line, 3-phase | L1 | black |
Likewise, people ask, what Colour are 3 phase wires?
yellow
Subsequently, question is, what do electrical wire colors mean? The simple explanation is that every color used for electrical wiring has a specific meaning, with different colors indicating different circuit types and purposes. NEC imposes the following electrical wiring color standards: Ground wires: green, green with a yellow stripe, or bare copper. Neutral wires: white or gray.
Also to know is, what is a phase wire?
A wire associated with a single phase(R/Y/B) is called a phase wire. A phase wire carries current only meant for that phase. In star connection line current equals phase delta connection line current equals √3 times phase current. The materials used for phase wire is invariably.
What color wire is 240v?
The White Wire in a 240V Circuit That is when a cable is used to feed a straight 240V load. If an appliance does not need or use 120V power, but only needs and uses 240V power, a standard 2-conductor cable, which has a black, white and bare set of wires, may be used to connect that appliance.
What is 3 phase wiring?
Three-phase power provides three alternating currents—essentially three separate electric services—uniformly separated in phase angle. That is, the points in time at which each leg of alternating current reaches a maximum voltage are separated by 1/3 of the time in a full cycle.Is Red live or neutral?
US AC power circuit wiring color codes The neutral is white, the hot (live or active) single phase wires are black , and red in the case of a second active. Three-phase lines are red, black, and blue.Is black or GREY neutral?
Brown is always L or SL, black is always SL, grey is always neutral.Is blue wire live or neutral?
The live wire is brown in colour and brings in the current. the neutral coloured Blue is the return wire . The earth is coloured green or yellow. These wire supply electricity to separate circuits within the house .Does 3 phase have a neutral?
Three phase systems may or may not have a neutral wire. In high voltage distribution situations it is common not to have a neutral wire as the loads can simply be connected between phases (phase-phase connection). Three phase has properties that make it very desirable in electric power systems.What Colour is neutral in 3 core cable?
All three cores have coloured insulation: brown for live, blue for neutral and green/yellow for earth.Which color wires go together?
The protective ground is green or green with yellow stripe. The neutral is white, the hot (live or active) single phase wires are black , and red in the case of a second active. Three-phase lines are red, black, and blue.How many volts is a 3 phase?
The voltage betwee two line is called line voltage . 3 phase system is expressed with line voltages. The line votage is 440 volt. Also the voltage between any one phase and neutral for a 3 phase system is 240 volts.Why is there no neutral in 3 phase?
The delta wiring of the primary side of that supply transformer means that no neutral is needed in the high voltage side of the network. If the supply neutral of a three-phase system with line-to-neutral connected loads is broken, generally the voltage balance on the loads will no longer be maintained.What is phase or neutral?
Phase acts as main supply line while neutral acts like a return path for the circuit to be completed. Phase has some potential value but neutral has zero potential value in normal condition. In the case of fault condition or Short Circuit there is flow of Current and voltage from neutral.What happens if we connect two phase wires?
If you connect two wires of the same phase, nothing would happen, except that the line can be treated as a double circuit line which would now have double the current carrying capacity. Also, when you want to short two lines of the same phase, make sure they are of the same voltage level and frequency.What Colour is phase wire?
The protective ground is green or green with yellow stripe. The neutral is white, the hot (live or active) single phase wires are black , and red in the case of a second active. Three-phase lines are red, black, and blue.What happens if phase and neutral are connected?
What happens when neutral wire is disconnected? When the neutral wire in a 3 – phase, 4 – wire system is disconnected, the loads which are connected between any two line conductors and the neutral are get connected in series and the potential difference across the combined load becomes equal to the line voltage.What is 2 phase in electricity?
2 phase electrical wiring is where you have 2 wires each providing the same voltage AC but out of phase with each other. 2 phase electrical wiring is where you have 2 wires each providing the same voltage AC but out of phase with each other.What is the difference between line and neutral?
“Line” is probably synonymous with “Hot”, but it often refers to the wire that comes from the service to the box you're working on; as opposed to “Load” which is away from the service. The distinction is important when wiring GFCI outlets. The neutral wire is generally white.What is the difference between 2 phase and 3 phase?
Three-phase electric power requires less conductor mass for the same voltage and overall power, compared with a two-phase four-wire circuit of the same carrying capacity. It has replaced two-phase power for commercial distribution of electrical energy, but two-phase circuits are still found in certain control systems.Why is neutral wire needed?
Neutral wires carry currents back to power source to better control and regulate voltage. Its overall purpose is to serve as a path to return energy. Ground wires are electrical paths designed to carry fault currents when a power abnormality occurs.
