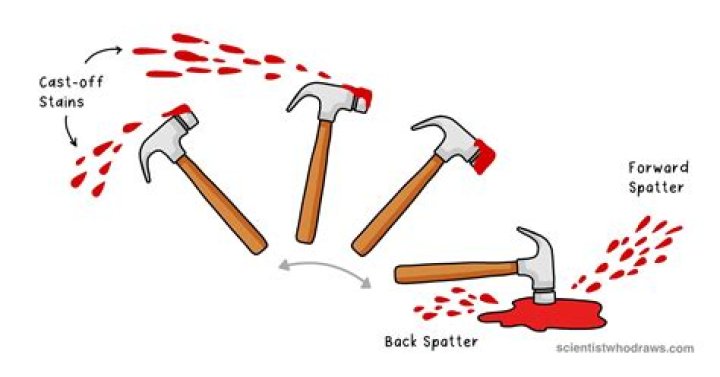

Cast-off - results when an object swung in an arc flings blood onto nearby surfaces. Expirated spatter - is usually caused by blood from an internal injury mixing with air from the lungs being expelled through the nose, mouth or an injury to the airways or lungs.

Besides, what causes back spatter?

Back spatter is blood directed towards the source of energy or force that caused the spatter. Due to the high speed and the power of the bullet, the blood spatter that is created is usually less than 2 millimeters. Sometimes the force that is carried out on the blood is so great, that a misting pattern is formed.

Also, how does forward spatter compare to impact spatter? Forward Spatter Pattern - A bloodstain pattern resulting from blood drops that traveled in the same direction as the impact force. Impact Pattern - A bloodstain pattern resulting from an object striking liquid blood. Platelets are activated when an injury causes a blood vessel to break.

Also question is, how is the direction of a cast off blood spatter determined?

The direction of blood droplets can be determined from the shape that it forms when they hit the flat surface. The tail of the elongated drop points to the travel direction. This droplet was traveling from bottom left to upper right. the victim may be somewhere in the lower left.

What are the 4 types of passive bloodstains?

  • Passive. a. formed from the force of gravity acting alone. b. subdivided (drops, drip patterns, pools, clots) c. oozing or gushes from the body, dripping finger or arm, drops from a knife.
  • Transfer. a. wet bloody surface comes in contact with a secondary surface. b. wipe, smudge, swipe or smear. c.
  • Projected blood spatter.

What causes high velocity blood spatter?

Forward Spatter -- Blood which travels in the same direction as the source of energy or force which caused the spatter. High Velocity Impact Spatter (HVIS) -- A bloodstain pattern caused by a high velocity impact /force to a blood source such as that produced by gunshot or high speed machinery.

What is the difference between a wipe and a swipe?

As verbs the difference between swipe and wipe is that swipe is to steal or snatch while wipe is to move an object over, maintaining contact, with the intention of removing some substance from the surface (cf rub).

How does surface affect blood spatter?

The texture of the target surface upon which a drop of blood falls affects the size and shape of the bloodstain pattern. Hard, nonporous surfaces will produce circular stain patterns that have smooth edges, but softer, porous surfaces will produce spatter stains that are scalloped or have rough edges.

Is it blood spatter or blood splatter?

To spatter means to scatter small particles of a substance. A spatter is the pattern of drops that result from spattering. To splatter means to scatter large particles of a substance. A splatter is the pattern of drops that result from splattering.

What factors affect blood spatter patterns?

Bloodstain Characteristics
  • Many factors affect the size and shape of the blood drops.
  • In addition to droplet volume, distance of fall and the blood source surface characteristics, other factors affect the size, shape and appearance of the bloodstains.

How do you find the angle of blood spatter?

Angle of Impact
  1. Measure the length and width of the splatter.
  2. Divide the width of the splatter by its length.
  3. Determine the arcsin of that number, typically using a calculator with an arcsin function.

What is transfer stain?

What is Transfer Stain. 1. A bloodstain that is formed as a result of contact between a blood-bearing surface and another surface which might or might not be a bloody surface. These stains usually provide significant information about the morphology of the blood-bearing surface.

How would a point of convergence be determined?

A complete procedure for identifying the area of convergence of blood drops originated from a single static source is presented. The method generates a probabilistic map for the area of convergence, directly linking the angles of impact, and their uncertainties, to the projection on the ground of the point of origin.

What is a cast off blood spatter?

Cast-off - results when an object swung in an arc flings blood onto nearby surfaces. This occurs when an assailant swings the bloodstained object back before inflicting another blow. Analysts can tell the direction of the impacting object by the shape of the spatter (tails point in the direction of motion).

What are the two phases of bloodstain pattern analysis?

Bloodstain pattern analysis is performed in two phases: pattern analysis and reconstruction. 1. Pattern Analysis looks at the physical characteristics of the stain patterns including size, shape, distribution, overall appearance, location and surface texture where the stains are found.

What can you learn from blood spatter?

The shape and size of these droplets can help to determine the positioning of a victim, the type of weapon used, and the force used in the crime. On the other hand, blood drip stains appear when only gravity works on the blood.

What can dried blood tell an expert?

Dry blood samples can detect both antibodies and hepatitis virus RNA successfully. It involves obtaining a few drops of blood by fingerprinting, and letting them dry on a specially specific absorbent paper card.

What are passive bloodstains?

Passive bloodstains are drops created or formed by the force of gravity acting alone. Passive bloodstains can be further subdivided to include drops, drip patterns, pools, and clots.

What two forces does a blood droplet experience as it falls?

Blood forms a spherical shape (perfect circular shape) almost immediately upon separating from the blood source. The spherical shape is caused by the surface tension of the blood. Surface Tension causes the blood drop to pull itself in; both horizontally and vertically.

How does knowing the angle of impact help investigators solve crimes?

By measuring the blood droplets their width by their length (minus the tail) to determine the arcsine. This will determine the angle of impact. Once an investigator knows the angle of impact, this can help the investigator to determine if the victim was standing, kneeling, or laying down at the time of the incident.

Why is it important to reconstruct the crime scene using blood spatter?

The general role of the Bloodstain Pattern Analyst in a criminal investigation is to assist in the reconstruction of those events of an alleged incident that could have created the stains and stain patterns present at a crime scene, on items of physical evidence recovered from that scene and on items of clothing that

What is blood spatter analysis used for?

Bloodstain Pattern Analysis (BPA) is the study and analysis of bloodstains at a known or suspected crime scene with the purpose of drawing conclusions about the nature, timing and other details of the crime. It is one of the several specialties of forensic science.
