ReBar and fiber do different jobs. Fiber reduces hairline cracks and surface spalling. The concrete holds together better but doesn't have any more strength. ReBar increases shear and tensile strength.

Similarly, does fiber mesh replace rebar?

Fiber is for shrinkage cracking while the concrete cures. It is not a substitute for rebar or wire mesh and does not serve the same functions. You can sometimes get away with it on pedestrian areas like a patio or sidewalk.

Additionally, does fiber concrete need rebar? Better yet is to use both the steel rebar with the fiber mesh. also put the rebar in the other heavy load areas like down the driveway for extra support. The fiber mesh strengthens the concrete and the steel rebar reinforces the extra load areas. All concrete cracks.

Similarly one may ask, what is better fiber or wire mesh or rebar in concrete?

Wire mesh resembles a two-dimensional grid. Fiber mesh, on the other hand, reinforces concrete throughout its entire width, rather than just providing a single layer of support. A driveway, patio or sidewalk needs to be particularly strong, given the regular traffic it has to handle.

Is concrete with fiber stronger?

Generally fibers do not increase the flexural strength of concrete, and so cannot replace moment–resisting or structural steel reinforcement. If the fiber's modulus of elasticity is higher than the matrix (concrete or mortar binder), they help to carry the load by increasing the tensile strength of the material.

Do you need rebar for 4 inch slab?

If you don't put rebars in a 4-inch [10 CM] slab, then it won't be reinforced concrete - and won't perform. As a general rule, any section of concrete must have at least 0.25% of its area in rebars to be considered reinforced concrete and do the intended job.

Does wire mesh help concrete?

And yes, mesh is important: Concrete is strong in compression, but not under tension. So, if it flexes, like a slab with a vehicle on top of will do, it cracks at the bottom whre the flexing becomes tension. Steel mesh will prevent this to a large degree and hold it all together.

Can I use rusty rebar in concrete?

As long as there is not loose, flaky rust, the concrete will bond to it better than a smooth, or painted surface. Re: Rusty Rebar?!? Do NOT weld rebar and then put the welded joint in the concrete, that is not allowed by building codes. Virtually all rebar has that thin film of rust on it.

Does fiber mesh add strength to concrete?

Fiber mesh does not add anything or marginally increases concrete's compressive strength. It also marginally increases its flexural strength and tensile strength. But the major advantages of adding such fibers in concrete is to increase ductility of concrete.

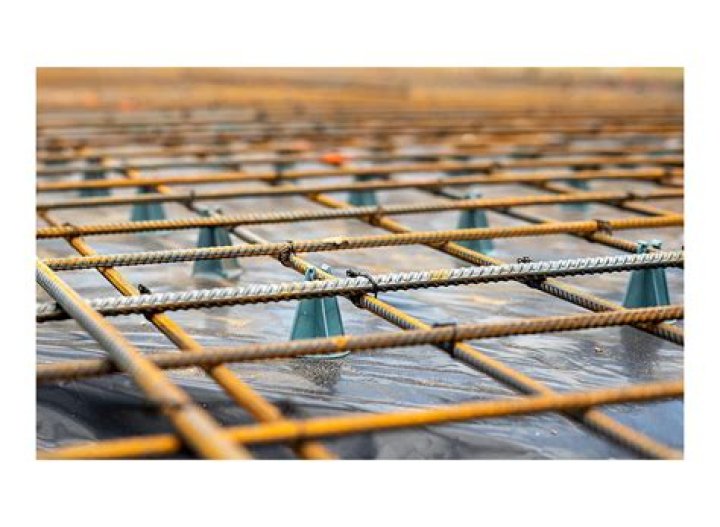

Where does Rebar go on a concrete slab?

Therefore, for a typical 100 mm residential concrete slab, the rebar should be placed at a depth of approximately two thirds the slab thickness from its surface. Placing the rebar at the bottom of the slab will provide no benefit to the concrete.

Does driveway need rebar?

Rebar can be required if the soils behave poorly, the slab is large and flatness/cracking are design issues… but that is a very unlikely scenario. Rebar is best utilized in a driveway for which 5-6 inches of concrete can be poured. This is because rebar is relatively thicker than galvanized mesh reinforcement.

Do you need rebar in a concrete slab?

Not all surfaces need concrete rebar reinforcement, but adding it makes concrete stronger and more resistant to large cracks. Without rebar reinforcement, concrete is highly prone to cracks due to tension forces. Rebar helps prevent cracks from growing wider largely by preventing cracked slabs from moving apart.

How much does it cost to add fiber to concrete?

In general, and depending on the type of steel fiber used, it can add between $6 to $10 per cubic yard on top of the ready-mix concrete cost. This cost is based on the assumption that you are using 1.5 pounds per cubic yard of concrete.

How thick should the concrete be for a driveway?

As for thickness, non-reinforced pavement four inches thick is standard for passenger car driveways. For heavier vehicles, a thickness of five inches is recommended. To eliminate standing water, the driveway should be sloped towards the street a minimum of one percent, or 1/8 inch per foot, for proper drainage.

What is Remesh used for?

Welded 6-gauge wire mesh, also called remesh or concrete reinforcement mesh, is a workhorse with multiple uses in the kitchen garden. With remesh and a bolt cutter you can produce fence panels, gates, trellises and cloche frames quickly and easily.

What is the wire mesh in concrete called?

Concrete slab mesh is also called reinforced welded wire mesh, which is made of galvanized stainless steel wires.

How much stronger is concrete with rebar?

Concrete that has an impressive compressive strength of 4,000 psi has maybe 400 psi of tensile strength. Not so strong in tension! Since reinforcing steel can withstand much higher tension or stretching forces than concrete, we use steel to withstand the tensile stresses that build up in the product when it is loaded.

What is Fibermesh?

Fiber mesh is an additive of synthetic fibers usually added at the mixing plant. The fibers are used to solve a very particular problem called shrinkage cracking.

How much is a yd of concrete?

Cost. Use $90 per cubic yard as a ballpark figure for concrete prices, but concrete slab cost will vary by region. Also, expect a fee of about $60 per load for delivery from a concrete truck for concrete cost. There could be other fees for such things as Saturday concrete truck delivery and small loads.

Does rebar prevent cracking concrete?

Steel reinforcing bars and welded wire reinforcement will not prevent cracking. Reinforcement is basically dormant until the concrete cracks. After cracking, it becomes active and controls crack widths by restricting crack growth.

Can you see fiber in concrete?

Another problem is that mesh does not prevent or minimize cracking-it simply holds cracks that have already occurred together. If you could look into a section of concrete poured with fibers you would see millions of fibers distributed in all directions throughout the concrete mix.

What is the purpose of fiber in concrete?

Fibres are usually used in concrete to control plastic shrinkage cracking and drying shrinkage cracking. They also lower the permeability of concrete and thus reduce bleeding of water. Some types of fibres produce greater impact, abrasion and shatter resistance in concrete.
