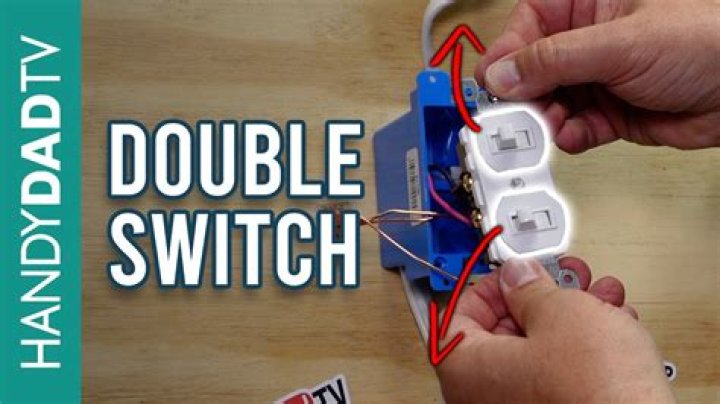

Here's how to replace a double light switch, either because the original one is old or you want a new style.
  1. Step 1 - Shut off the Power.
  2. Step 2 - Access the Double Light Switch.
  3. Step 3 - Identify Wires.
  4. Step 4 - Connect the Double Light Switch.

Similarly, how does a double light switch work?

Double pole light switches, also known as a four-way switch, are two single pole switches put together. Two separate circuits are controlled by one switch. This is typically used to control a circuit from multiple locations in a series of three switches on one circuit.

Also Know, can I change a light switch without turning off the power? You can, but it's not a good idea. Heck, you can change it with the power on, but that's not a good idea, either. Turning off the switch will disconnect power, if the fixture is wired properly. Some still like to run a “hot” wire to each lamp, and switch the neutral, or grounded conductor.

In respect to this, does it matter which wire goes where on a light switch?

If your switch has a “LINE” marking, the always hot wire goes to this. The other connection will be “LOAD” where the load (ie light fixture) is wired. The load wire may have red electrical tape on it to differentiate.

How hard is it to change a light switch?

To replace this kind of switch, follow these steps: Turn off the power to the switch at the main circuit breaker or fuse panel. Unscrew and remove the switch plate; then use a voltage tester to make sure that the circuit is dead. Unscrew the switch from the electrical box and pull it out with the wires still attached.

How do you wire a light switch and outlet in the same box?

Connecting Separate Devices in a Double-Gang Box The same three options exist when wiring separate devices. To have the switch control just the outlet, connect the hot circuit wire to one of the switch terminals, and then connect the other switch terminal to the brass terminal on the outlet with a short jumper wire.

What is the difference between a 2 way and 3 way light switch?

A two-way switch (2 connections to the switch, not including ground)turns lights on or off from 1 location only. A three-way switch (3 connections to the switch, not including ground) can turn lights on or off from 2 locations.

What does 2 way mean on a light switch?

1 gang = means 1 switch/socket on a plate. 2 gang = means 2 switches/sockets on a plate etc, 1 way = means a light can only be controlled from that switch. 2 way = means a light can be controlled from two sources, usually used for the control of a landing light .

What is the function of 2 way switch?

2 way switching means having two or more switches in different locations to control one lamp. They are wired so that operation of either switch will control the light. This arrangement is often found in stairways, with one switch upstairs and one switch downstairs or in long hallways with a switch at either end.

What is 2 way switch connection?

A 2-way switching connection means you can control an electrical equipment like bulb by two switches placed at different places, generally used in the staircase. There are two methods of making 2-way switching connection one is 2-wire control and another is 3-wire control.

What is a 4 way light switch?

Four-way switches are used to control lighting from three or more locations. Four-way switches are used in combination with three-way switches. There are four terminals that provide two sets of toggle positions on a four-way switch. When the switch is in the up position, the current can flow through two terminals.

How does a double pole switch work?

Poles: A switch pole refers to the number of separate circuits that the switch controls. A single-pole switch controls just one circuit. A double-pole switch controls two separate circuits. A double-pole switch is like two separate single-pole switches that are mechanically operated by the same lever, knob, or button.

What color is the common wire?

The "common" is the "neutral" or "ground" wire, depending on the type of circuit. In normal US residential wiring, you'll have a black "hot" wire, a white "neutral" or "common" wire, and a green or bare "ground" wire.

Why is a 3 way switch called 3 way?

The Purpose of a Three-Way Switch The name "three-way" is at first glance a little confusing. The term refers to the fact that there are three different ways the switch toggles can be arranged: both toggle levers up, both toggle levers down, or the toggle levers in opposite positions.

What is a 3 way wiring?

A three-way wall switch is a common type of light switch that makes it possible to control a ceiling light or other electrical fixture from two different locations in a room. Three-way switches are always used in pairs and include special wiring connections.

Can I run a light switch from an outlet?

Adding an electrical outlet next to an existing light switch is easy, as long as there is a neutral wire in the box. Step 1: Turn the power supply off to the light switch at the main electrical panel. Step 2: Remove the switch plate and unscrew the switch from the outlet box. Step 3: Pull the switch out from the box.

What is a double switch electrical?

A double-switch allows you to operate two lights or appliances from the same location. Double switches, sometimes called "double pole," allow you to separately control the power being sent to multiple places from the same switch.

How do I add a light switch to an existing circuit?

Adding a Light Fixture Mid-Circuit You can usually install a light fixture between an existing one and the switch by cutting the cable to the existing fixture at the location of the new one, inserting the ends of the cable into the electrical box for the new fixture and pigtailing the new fixture onto these wires.
